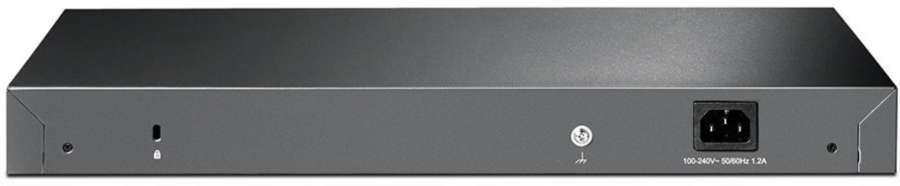

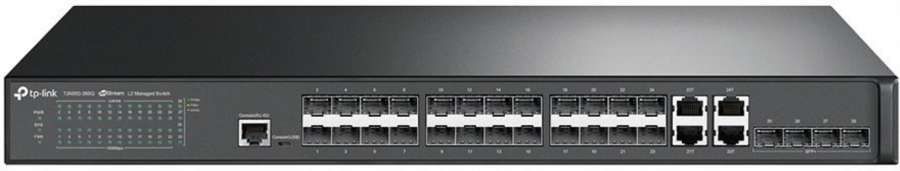

TP-LINK T2600G-28SQ

• Spravovatelný přepínač vhodný do racku
• podporuje QoS
• L2 / L2+ funkce
• VLAN
• IPv6
• Šířka pásma 128 Gbps
• packet forwarding rate 95,2 Mbps
• Rozhraní: 24 x gigabitový SFP slot
• 4 x combo 10/100/1000 Mbps RJ45 port
• 4 x 10G SFP+ sloty
• 1 x RJ45 konzolový port
• 1 x microUSB konzolový port

JetStream 28-Port Gigabit SFP L2 Managed Switch



T2600G-28SQ

Popis

TP-Link's JetStream T2600G-28SQ provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. With 24 gigabit SFP slots, 4 10/100/1000 Mbps RJ45 ports and 4 10G SFP+ slots, T2600G-28SQ ensures a highly stable and high-speed network environment. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitates network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2 managed Switches T2600G-28SQ provides a reliable, secure solution for enterprise, campus and ISP networks.

Technická specifikace

HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
• IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
• IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface
• 24 Gigabit SFP Slots
• 4 Combo 10/100/1000 Mbps RJ45 Ports
• 4 10G SFP+ Slots
• 1 RJ45 Console Port
• 1 Micro-usb Console Port
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
• 10GBASE-X:MMF, SMF
• 10GSFP+CU “SFP+ Direct Attach Cable” (TXC432-CU1M, TXC432-CU3M)
Fan Quantity
• 2
Power Supply
• 100~240VAC, 50/60Hz
Dimensions ( W x D x H )
• 17.32 • 8.7 • 1.73 in. (440 • 220 • 44 mm)
Mounting
• Rack Mountable
Max Power Consumption
• 29.67W (220V/50Hz)
Max Heat Dissipation
• 101.23 BTU/h

PERFORMANCE
Bandwidth/Backplane
• 128Gbps
Packet Forwarding Rate
• 95.2Mpps
MAC Address Table
• 16k
Jumbo Frame
• 9216 Bytes

SOFTWARE FEATURES
Quality of Service
• Support 802.1p CoS/DSCP priority
• Support 8 priority queues
• Queue scheduling: SP, WRR, SP+WRR
• Port/Flow- based Rate Limiting
• Voice VLAN
L2 and L2+ Features
• Static Routing
• DHCP Relay
• IGMP Snooping V1/V2/V3
• 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
• Spanning Tree STP/RSTP/MSTP
• BPDU Filtering/Guard
• TC/Root Protect
• Loopback detection
• 802.3x Flow Control
• L2PT
VLAN
• Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
• 802.1Q/ MAC/Protocol-based/Private VLAN
• GARP/GVRP
Security
• IP-MAC-Port Binding
• AAA
• 802.1x and Radius Authentication
• DoS Defend
• Dynamic ARP Inspection (DAI)
• SSH v1/v2
• SSL v3/TLSv1
• Port Security
• Broadcast/Multicast/Unknown-unicast Storm Control
IPv6
• Dual IPv4/IPv6 stack
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol
